Hitch Float

NOTE:

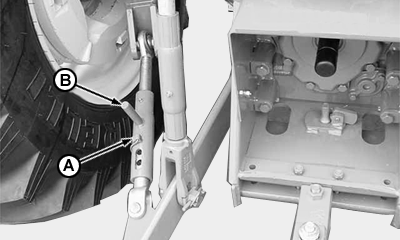

CQ215450-UN-04JAN12

IMPORTANT: Perform stabilizer adjustment with hitch arms raised to maximum height.

Adjust lateral float of implement when raising hydraulic hitch for transport, change position of pin (A) if necessary and turn threaded center pin (B) to lengthen or shorten stabilizer.

IMPORTANT: Maximum recommended opening of stabilizers is 450 mm from center to center.

NOTE: Use a spring and a rubber band to keep arms not in use away from rear tires.

IMPORTANT: Do not shorten stabilizers so much that they impede the hitch arms raising up fully. If arm movement of hitch is impeded, the relief valve will open and this will overheat the hydraulic oil and damage the pump.
