Fuse Capacity and Function

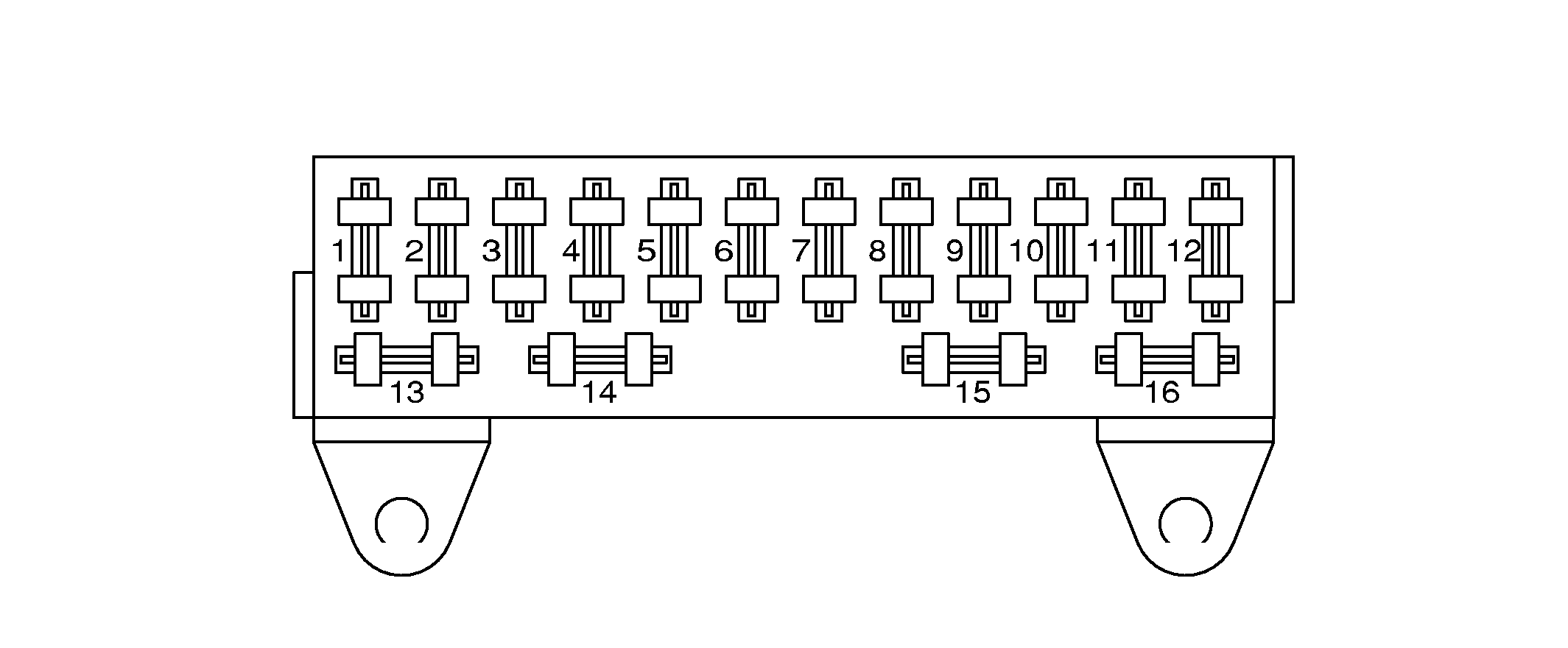

CQ257690-UN-21NOV05

1 - Not used

2 - Not used

3 - Fuel transfer pump - 10 A (not used)

4 - Turn signals - 10A

5 - Headlights (full-beam) - 10A

6 - Headlights (low-beam) - 10A

7 - Protection of relay K1, instrument panel, reverse light/back-up alarm, PTO indicator light - 10A

8 - Fuel cut-off solenoid - 10A

9 - Tail lights and position lights - 10A

10 - Work lights - 20A

11 - Light switch, brake light and turn signal/hazard warning lights - 20A

12 - Main switch - 20A

13 - Not used

14 - Not used
