Replacing Bulbs

1.
   PY8846-UN-22APR09


   PY5817-UN-16JUN06


   PY5818-UN-19JUN06

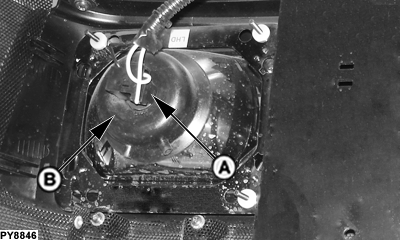

   Remove connector (A) from headlight.

---

2. Remove anti-dust seal (B).

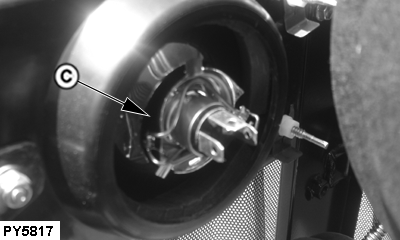

3. Twist assembly (C).

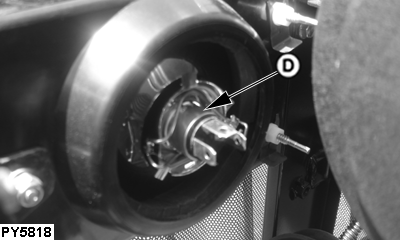

4. Remove bulb (D).

   IMPORTANT: Halogen bulbs are pressurized and may burst.

   Protect bulb against abrasion and scratches. To protect yourself against personal injury, use protective eyewear and clothes when handling bulbs. Disconnect power when installing and before removing a bulb. Discard bulbs carefully.

   Wait until a bulb cools down before removing it.

   Read and follow installation instructions of bulb manufacturer.

5. Install bulb, assembly, seal and connector in reverse order of disassembly.
