Adjusting Headlights

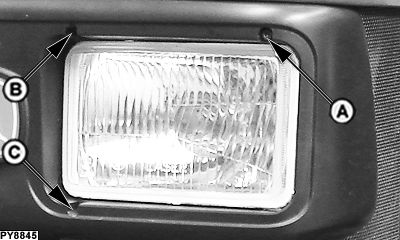

PY8845-UN-22APR09

1. Open the hood.
2. Turn screws (A-C) counterclockwise to lower assembly and clockwise to raise it.
3. To adjust the assembly toward center of tractor, turn screw (A) counterclockwise and screws (B-C) clockwise, turning each screw equally.
4. To adjust the assembly away from center of tractor, turn screws (B and C) counterclockwise and screw (A) clockwise, turning each screw equally.
