Tractor Storage

CQ283677
CQ283677-UN-21DEC09

CQ208420
CQ208420-UN-23AUG01

Filler neck and transmission oil level

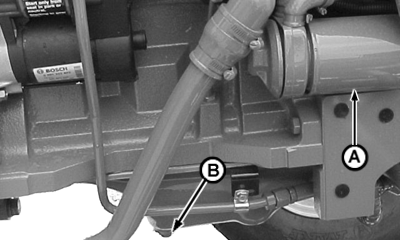

A - Engine Oil Filter

B - Engine Oil Drain Plug

IMPORTANT: If the tractor will not be used for months, use the following procedure to reduce corrosion and deterioration to a minimum. Use storage kit for AR41785 and 0,95 l (0.25 U.S.gal.) engines and additional rust inhibitor AR41870.

  1. Carry out air filter service. (See air filter service in Service section)
  2. If coolant is already in tractor for approximately 2 years, rinse cooling system (see "Cleaning Cooling System" in Service section.)
  3. Change engine oil and oil filter (A).
  4. Drain fuel and fill with 4 liters (1.1 U.S.gal.) of fuel. After add 0.4 liter (0.11 U.S.gal.) of rust inhibitor.
  5. Add 0.25 liter of rust inhibitor to transmission/hydraulic system.

    CQ208050
    CQ208050-UN-08FEB07

    CQ284061
    CQ284061-UN-29MAR10

  6. Start engine and run until operating temperature is reached. As well as raising and lowering hydraulic hitch several times. Shut off engine.

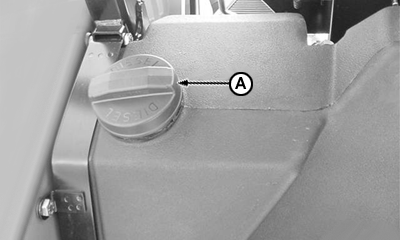

  7. Add 0.5 liter (0.13 U.S.gal.) of rust inhibitor to fuel tank (A).

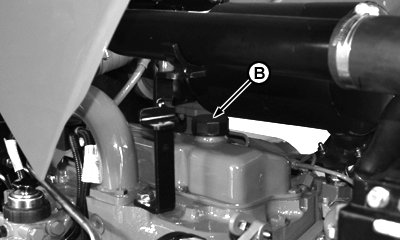

  8. Add 0.5 liter (0.13 U.S.gal.) of rust inhibitor to crankcase through filler neck (B).
  9. Disconnect cable of fuel cut-off solenoid. This prevents engine starting when cranking it.

    CQ208420
    CQ208420-UN-23AUG01

  10. Disconnect air intake hose from system. Add 0.1 liter (0.03 U.S.gal.) of rust inhibitor to system and reconnect hose. Move hand throttle backwards to slow idle position. Crank engine a few times.
  11. Loosen fan belt after engine has cooled.
  12. Remove and clean battery. Store it in a dry and cool place. Keep it charged.
  13. Secure or lock clutch pedal in disconnected position.
  14. Cover exposed metallic surfaces with grease or rust inhibitor.
  15. Use adhesive plastic and tape to seal air entry points, exhaust pipe, vent and filler neck etc.
  16. Cover instrument panel with opaque plastic to prevent discoloration of gauges.
  17. Raise tires off ground. Protect them from sunlight.
  18. Clean underside of tractor. Retouch paintwork that is scratched or marked.
  19. If storing tractor outdoors, cover it up with a waterproof tarp.

OU31386,000008F-19-20110517
