To Make Tractor Operational

PY4485-UN-16FEB06

1. Check tire inflation pressure (see section "Treads, Wheels and Tires"). Lower tires to the ground.
2. Open all closed openings for storage.
3. Install battery.
4. Adjust fan belt tension.
5. Remove device keeping clutch pedal engaged.
6. Check engine, transmission/hydraulic system and coolant oil levels, add if necessary.
7. Drain a little fuel from the tank to remove condensation.
8. Refill fuel tank.
9. Follow recommended service procedures for 10, 50, 250 and 750 hours indicated in “Service” sections.

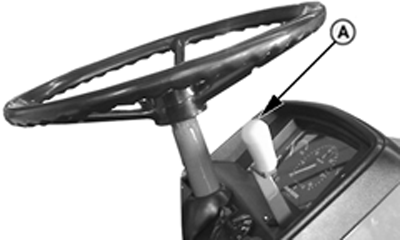

10. Move hand throttle (A) fully back and crank engine until oil pressure increases.

    IMPORTANT: DO NOT run starter motor for more than 20 seconds at a time and wait at least 2 minutes for it to cool before trying again.

11. Connect solenoid cable of fuel injection pump shutoff.
12. Start up engine. Allow engine to idle for a few minutes. Warm up carefully and check all systems before submitting the tractor to any load.
