Cooling System

CQ283682-UN-01JUN11

IMPORTANT: Never add cold water to cooling system of overheated engine, this could result in cylinder block cracks. DO NOT OPERATE ENGINE without coolant, even for just a few minutes.

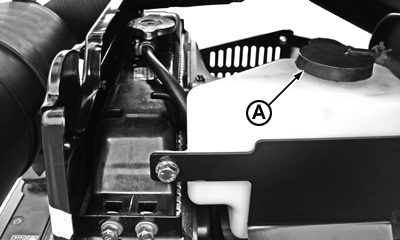

Visually check coolant level in expansion tank (A) periodically.

With engine cold, it should be at "LOW" mark
With engine hot, it should be at "FULL".
