Roll-Over Protective Structure (ROPS)

CAUTION:

CQ283686
CQ283686-UN-31MAY11

Make sure all parts are correctly installed. If the Roll-Over Protective Structure (ROPS) is removed or loosened, retighten all bolts to the appropriate torque before operating the tractor again.

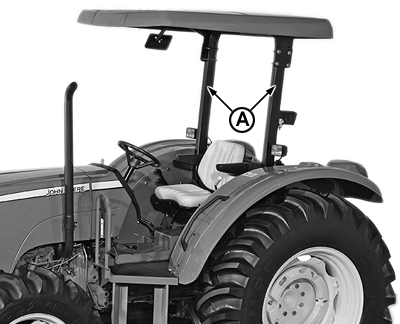

The protection provided by the Roll-Over Protective Structure (ROPS) (A) will be reduced if the structure suffers structural damage, such as caused by the tractor rolling over, or if the overall shape is altered by welding or by a strong impact. Roll-Over Protective Structure (ROPS) must always be replaced if subject to any of the irregularities referred to above.

OU31386,0000099-19-20091210
