Using the Transmission

IMPORTANT:

CQ283693
CQ283693-UN-17MAY11

CQ208260
CQ208260-UN-08FEB07

Right-hand side

CQ283692
CQ283692-UN-23DEC09

Left-hand side

To avoid transmission damage, do not change gear when tractor is moving. To avoid premature wear of braking system, avoid resting foot on brake pedals.

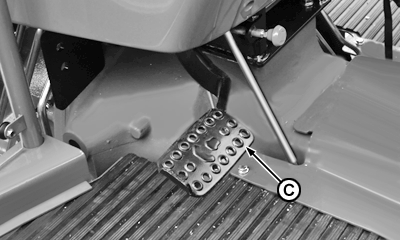

Engage clutch pedal (C) and stop tractor before moving gear lever (B) or group shift lever (A).

Engage clutch pedal (C) before moving gearshift lever (B). It is possible to change gears and gear direction (forward and reverse) while in movement, but it is not recommended. Release clutch pedal gradually and slowly to take up load evenly.

OU31386,000009E-19-20091210
