PTO Speed Selection

CQ283695
CQ283695-UN-23DEC09

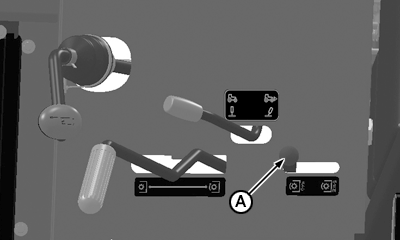

For standard PTO operation (operating that requires total engine power), pull lever (A) back to position 540.

For economic PTO operation (lighter operating), push lever to position 540E. In economic mode, the engine runs with low rpm to economize fuel while PTO shaft still turns at 540 rpm.

NOTE: With PTO lever in position 540E, the engine deactivates speeds above 1900 rpm (without load) or 1700 (with load), not allowing an increase through hand or foot throttle.

OU31386,000009F-19-20091210
