Driving Tractor On Public Roads

CAUTION:

CQ283671-UN-17MAY11

CQ283672-UN-17MAY11

Before driving on public roads, make sure hazard warning lights (A) and (B) are in proper working condition. Confirm that other safety equipment is in good working condition for road use.

CQ283668-UN-23DEC09

CQ284066-UN-29MAR10

CAUTION: NEVER turn on rear work light when driving tractor. The rear light is intense and could cause motorists approaching from the rear to lose road vision.

IMPORTANT: Consult "Lights" section in this manual for detailed descriptions of light use and functions.

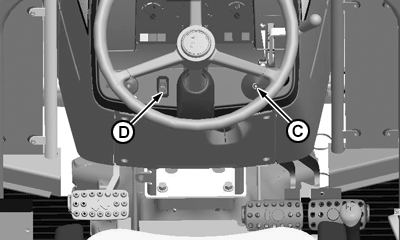

Move light switch (C) to position high-beam, low-beam or engage hazard warning lights button (D). Do not use rear work lights turned on. Use low beam for oncoming traffic. Keep headlights properly adjusted.

Use left-hand or right-hand turn signal lights when turning. Make sure to return signal lever to original position once turn is completed.

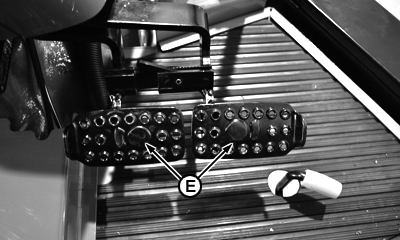

Before driving the tractor on public roads, couple brake pedals (E). Avoid sudden braking.

CQ283694-UN-23DEC09

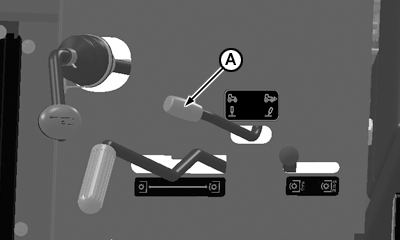

Disconnect front-wheel drive (A) (if equipped) when driving on public roads. Excessive front tire wear will result from transporting on hard surfaces with front-wheel drive engaged.

Drive at moderate speeds to maintain safe control at all times. Reduce speed on uneven ground or when negotiating tight turns, especially when transporting rear-mounted, heavy implements.

Before a descent, shift to a suitable gear in order to control the speed without needing to use the brakes. NEVER freewheel down a descent, or with tractor in neutral. Take special care if the descent has a loose gravel surface or whatever other factor that may affect safety.

TS216-UN-23AUG88

CAUTION: Braking to slow down towed loads traveling at transport speed can cause a to-and-fro movement and even roll over. Reduce speed if the towed load is heavier than the tractor and does not have its own braking system. Follow the following recommendations for speed and weight:

When towing loads with a weight equal to or less than tractor, do not exceed maximum speed of 32 Km/h (19.9 mph).

Reduce speed to 16 Km/h (9.9 mph) when towing loads up to twice as heavy as the tractor.

Do not tow loads heavier than twice the tractor's weight.

Take additional care when towing loads in adverse conditions, on tight bends and on descents.

Pay special attention when driving tractor at transport speed. Reduce speed if the towed load is heavier than the tractor and does not have its own braking system. (See Operator's Manual of implement to consult recommended transport speeds).

Take additional care when transporting loads under adverse conditions, on irregular surfaces, in tight bends or when braking on descent.

Heavy, towed or rear-mounted implements may start to-and-fro movement during transport. Excessive to-and-fro movement may cause loss of steering control. Drive slowly and avoid sudden steering wheel maneuvers. Consult Operator's Manual of implement to check maximum speed limits.
