Bleeding Off Water and Sediment from Fuel Tank

CQ267250-UN-06MAR06

PY5938-UN-31AUG09

Right Hand Lateral Engine View - Bleeding Off Accumulated Residue

NOTE: Place a small container under the tap to collect spilt fuel.

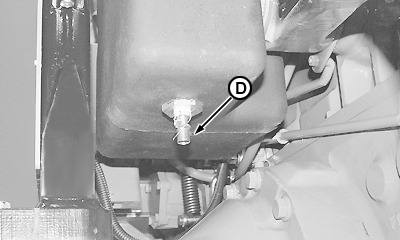

Open tap (D) of fuel tank to bleed off accumulated humidity and fuel tank residue. Close tap when clean fuel starts to come out.

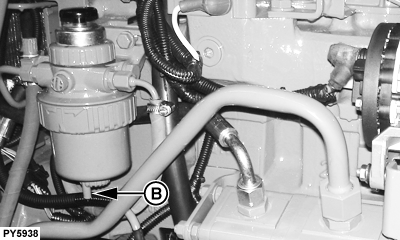

Open drain valve of fuel filter (B) to bleed off humidity and sediment accumulated in the filter. Close tap when clean fuel starts to come out.
