Checking Free Travel of Clutch Pedal

CQ283761
CQ283761-UN-23DEC09

CQ261900
CQ261900-UN-30JAN06

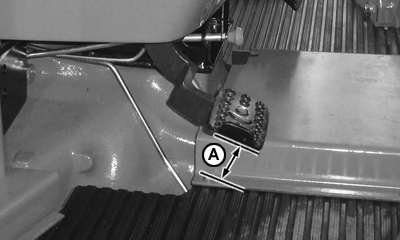

  1. Press clutch pedal until resistance is felt. Measure play (A).

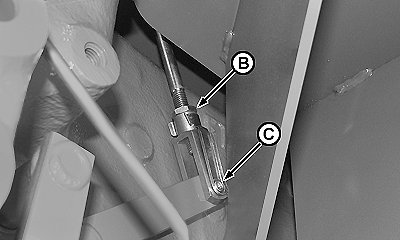

  2. If play does not meet specifications, loosen nut (B), remove clamp and pin (C) and turn adjustment yoke as necessary.

ItemMeasurementSpecification
Clutch Pedal Play 5090E Tractor25 — 35 mm (0.984 — 1.377 In)

OU31386,00000AA-19-20111208
