Cleaning Radiator Screen and Fins

TS266-UN-23AUG88

PY8840-UN-21JUN09

CQ283737-UN-21DEC09

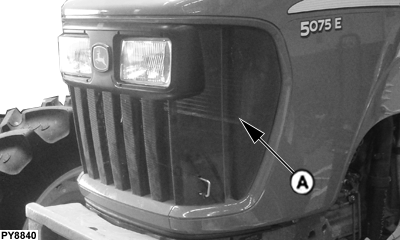

A - Front screen

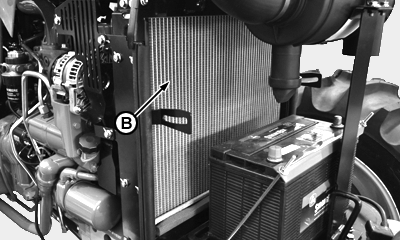

B - Radiator fins

1. Each time dirt accumulates on screen (A) of tractor front, turn off engine and clean them with a steel brush.
2. Open hood and check for dirt build-up on radiator fins (B). In this case remove it with a steel brush or with compressed air.

   CAUTION: Reduce compressed air to less than 210 kPa (2.1 bar, 30 psi) when using for cleaning purposes. Wear protective equipment.

3. If more cleaning is needed, clean the radiator from the rear with compressed air or water. Use a fin comb to straighten bent fins.
