Checking Hose and Clamp Tightness

CQ283734-UN-21DEC09

CQ283757-UN-21DEC09

CQ283758-UN-21DEC09

CQ283759-UN-21DEC09

CQ283735-UN-21DEC09

Check clamp tightness of the following positions:

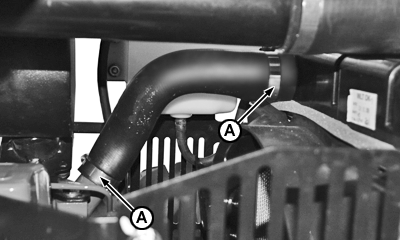

• Radiator inlet hose (A)

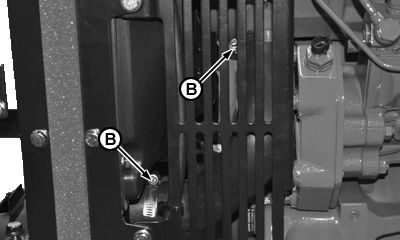

• Radiator outlet hose (B)

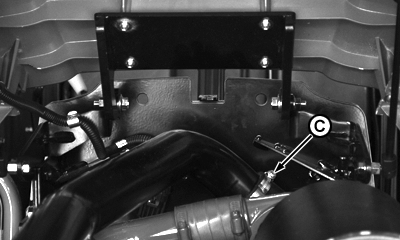

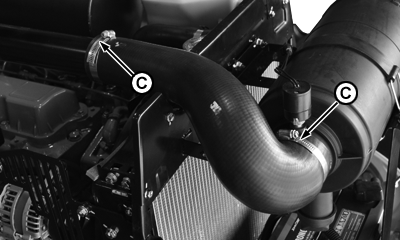

• Intake system (C)

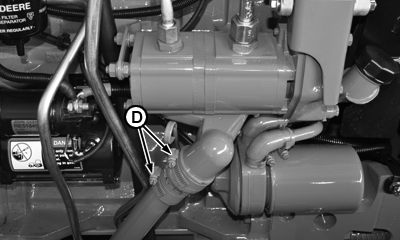

• Hydraulic system (D)

Check hoses for cracks which could cause leaks. Replace if necessary.
