Replacing Fuel Filter

CQ284057
CQ284057-UN-29MAR10

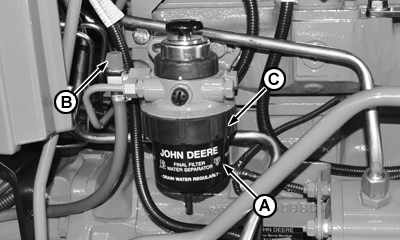

Replace filter (A) at least once a year

  1. Close fuel shut-off valve (B).

  2. Remove retaining ring (C) and filter (A).

  3. Install new filter with retaining ring, tightening by hand.

  4. Open fuel shut-off valve and drain air from filter. (See "Bleeding Fuel System", in "Service" Section).

OU31386,0000111-19-20100325
