Using Differential Lock

CAUTION:

CQ284065
CQ284065-UN-29MAR10

DO NOT run tractor at high speeds or try to make turns with differential lock engaged

IMPORTANT: To prevent damage to the assembly, DO NOT engage differential lock when one wheel is spinning and the other is completely stopped.

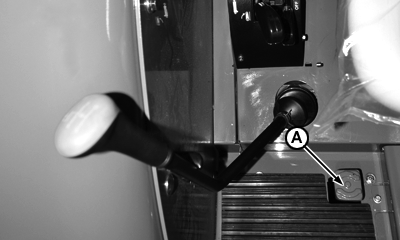

When a wheel begins to lose traction, step on pedal (A) to engage differential lock.

Unequal traction between wheels maintains differential lock engaged. When traction is equal the lock disengages automatically through spring action.

If lock does not disengage, step on one brake pedal followed by the other.

If the tires slip, recover traction and then slip again, keep pedal in connected position.

OU31386,0000112-19-20100329
