Tightening Bolts - Front Axle

Tighten bolts to specification at following locations:

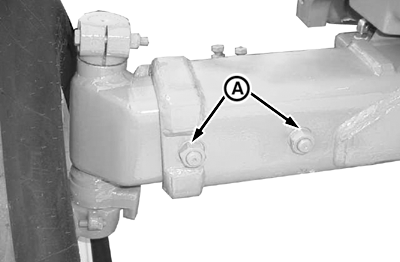

Carraro Axle

P13204-UN-20SEP04

Carraro Axle

Item	Measurement	Specification
Adjustable Carraro Front Axle - Axle Attaching Bolts (A)	Torque	400 Nm (295 lb-ft)

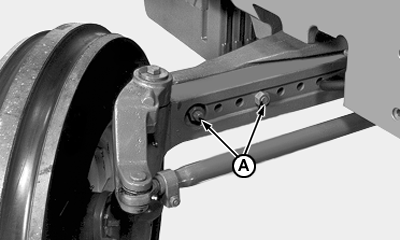

Dana Axle

CQ161430-UN-08FEB07

Dana Axle

Item	Measurement	Specification
Adjustable Dana Front Axle - Axle Attaching Bolts (A)	Torque	480 Nm (354 lb-ft)

PY1487-UN-18JAN06

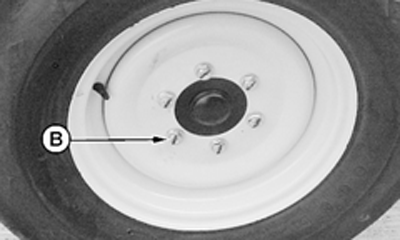

2 WD

CQ283762-UN-23DEC09

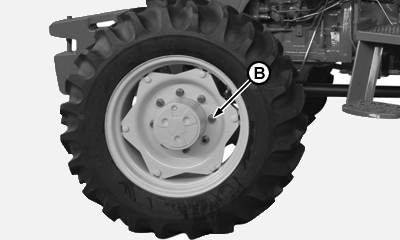

Front-Wheel Drive

Item	Measurement	Specification
Adjustable Front Axle - Disk-to-Flange Bolts (B) (2 WD)	Torque	210 Nm (155 lb-ft)
Front Axle - Disk-to-Flange Bolts (B) (4 WD)	Torque	310 Nm (229 lb-ft)
