Cleaning Oil Filter Mesh of Transmission/Hydraulic System

CQ262040-UN-08FEB07

CQ208420-UN-23AUG01

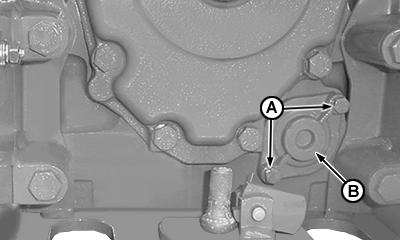

After oil is drained, remove two bolts (A) and remove mesh cover (B). Remove mesh and examine it for damage. Replace damaged mesh. Clean parts in solvent and dry with compressed air. Install mesh carefully so that its front part fits into hole on front part of differential housing.

Fill system with transmission/hydraulic oil (See “Fuel, Lubricants and Coolant” section).

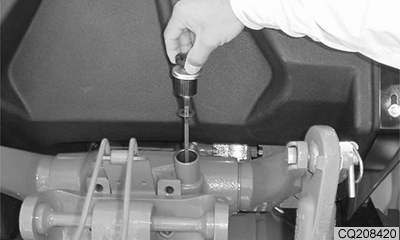

Check oil level after filling and again after 5 minutes of machine operation.
