Position Center Link

LV14569
LV14569-UN-04AUG11

Positioning Center Link

LV14570
LV14570-UN-04AUG11

Bracket Inverted

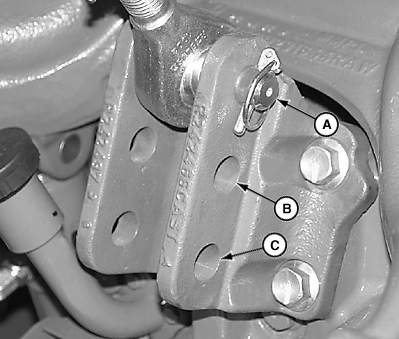

A - Upper Hole

B - Middle Hole

C - Lower Hole

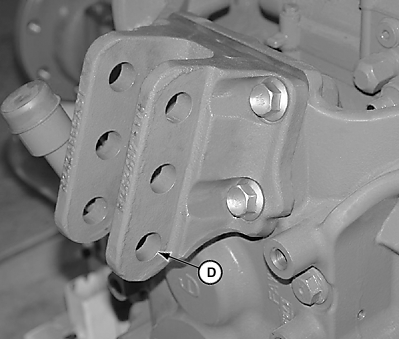

D - Lowest Hole (with center link bracket inverted)

The center link attaching bracket has holes which allow four different positions for attaching the center link.

NOTE: Center link attaching bracket can be inverted to provide hole position (D).

If the following conditions occur, move center link to indicated holes to correct.

Condition

Use Holes

Rear of implement rises too much when lifted. 1

A or B

Rear of implement drags the ground.

B or C

NOTE: Implements with Category I mast height 457 mm (18 in.) normally use attaching holes (C and D), and implements with Category II mast height 483 mm (19 in.) use holes (A and B).

ItemMeasurementSpecification
Center Link Cap Screws Torque320 N·m (236 lb.-ft.)

1 The implement weight which can be lifted is reduced slightly with center link attachment in lower holes.
