Tighten Bolts—Rear Axle

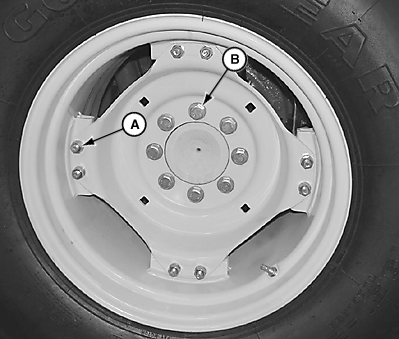

LV14728-UN-25AUG11
A - Rear Wheel Rim-to-Disk Bolts
B - Rear Wheel Disk-to-Hub Bolts
Tighten bolts (A and B) to specifications.
| Item | Measurement | Specification |
| Rear Wheel Rim-to-Disk (Steel 24 in. and 28 in. Wheels) | Torque | 245 N˙m (180 lb-ft) |
| Rear Wheel Rim-to-Disk (Steel 30 in. and 38 in. Wheels) | Torque | 350 N˙m (255 lb-ft) |
| 5085M, 5100M, and 5115M—Rear Steel Wheel Disk-to-Hub M20 Bolts | Torque | 600 N˙m (445 lb-ft) |
| 5100MH— Rear Steel Wheel Disk-to-Hub M18 Bolts | Torque | 410 N·m (302 lb.-ft.) |
|
GS25068,0001AB0-19-20150622 |
