Adjust Steering Wheel Tilt and Height

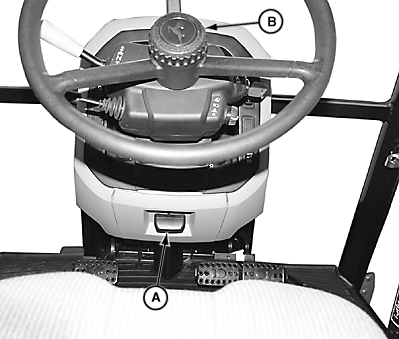

NOTE: Cab is shown; OOS and low profile similar.

LV14506
LV14506-UN-29JUL11

A - Steering Wheel Tilt Lever

B - Steering Wheel Telescope Release Ring

Tilt: Lift lever (A) and move steering column to desired angle.

Telescoping: Loosen telescope release ring (B) and adjust steering wheel to desired height. Tighten ring to lock into position.

JZ81662,0000338-19-20110805
