Windshield Wiper and Washer

LV14515-UN-29JUL11

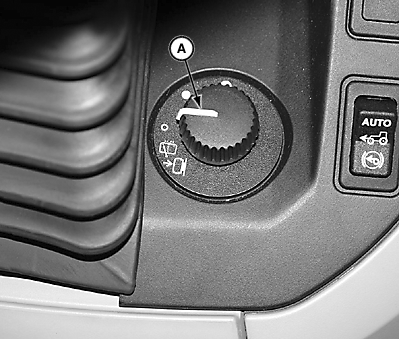

Windshield Wiper Switch

LV14516-UN-29JUL11

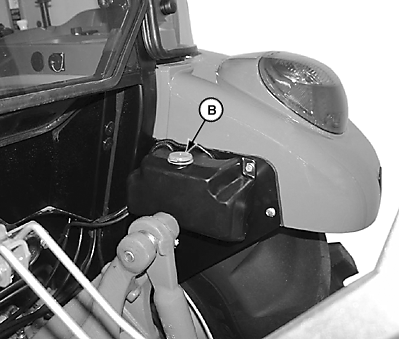

Reservoir

A - Windshield Wiper/Washer Switch

B - Washer Fluid Reservoir

Rotate wiper switch knob (A) to move windshield wipers to OFF, SLOW, or FAST position.

Push switch knob to activate windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid.
