Engine Block Coolant Heater

CAUTION:

TS210
TS210-UN-23AUG88

LV14543
LV14543-UN-02AUG11

Engine Block Coolant Heater

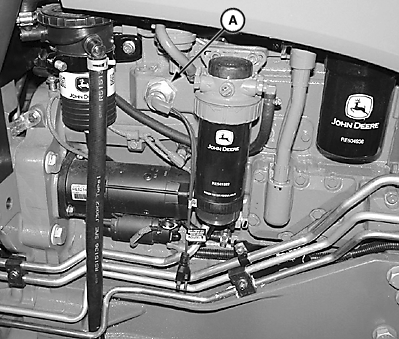

A - Engine Block Coolant Heater

To avoid shock or hazardous operation, always use a three-wire heavy-duty electrical cord (minimum gauge 10 AWG and no longer than 7.6 m [25 ft.]) equipped with three terminals.

If a two-to-three contact adapter is used at the wall receptacle, connect green wire to a good ground.

Immerse element in coolant before connecting heater to power source. NEVER energize heater in air.

Located on side of the engine, the 110 V coolant heater (A) warms the engine coolant, reduces oil drag, eases starting, and shortens warmup time.

Connect block heater plug to a ground fault protected 110 V electrical outlet.

JZ81662,0000352-19-20110805
