Operate Electrohydraulic Draft Control—If Equipped

LV14562-UN-04AUG11

LX1026120-UN-10MAY01

LX1026059-UN-18MAY01

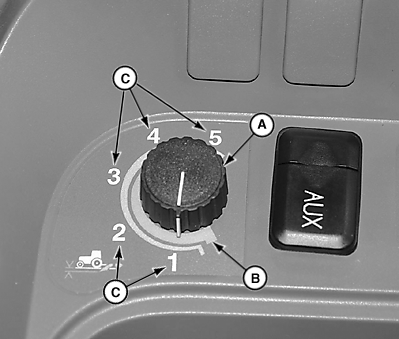

A - Load/Depth (Draft) Knob

B - Position Control Detent

C - Draft Control Setting

Rear hitch load/depth (draft) knob (A) controls 3-point hitch mounted implement ground penetration response to varying soil conditions.

Turn load/depth (draft) knob to one of five draft settings (C), to control depth and load, depending on implement and field or soil conditions:

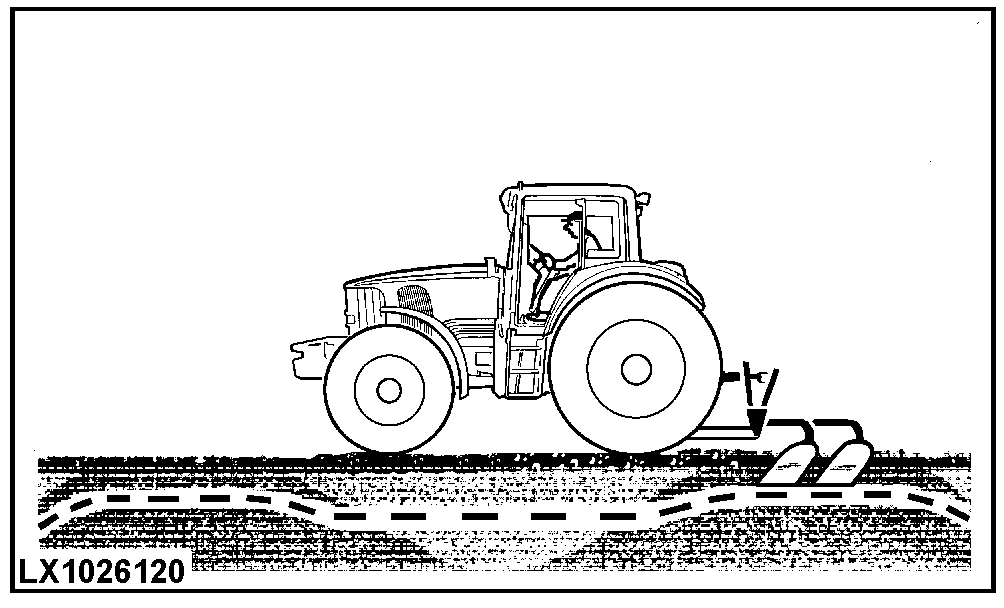

Turn COUNTERCLOCKWISE to reduce draft response.

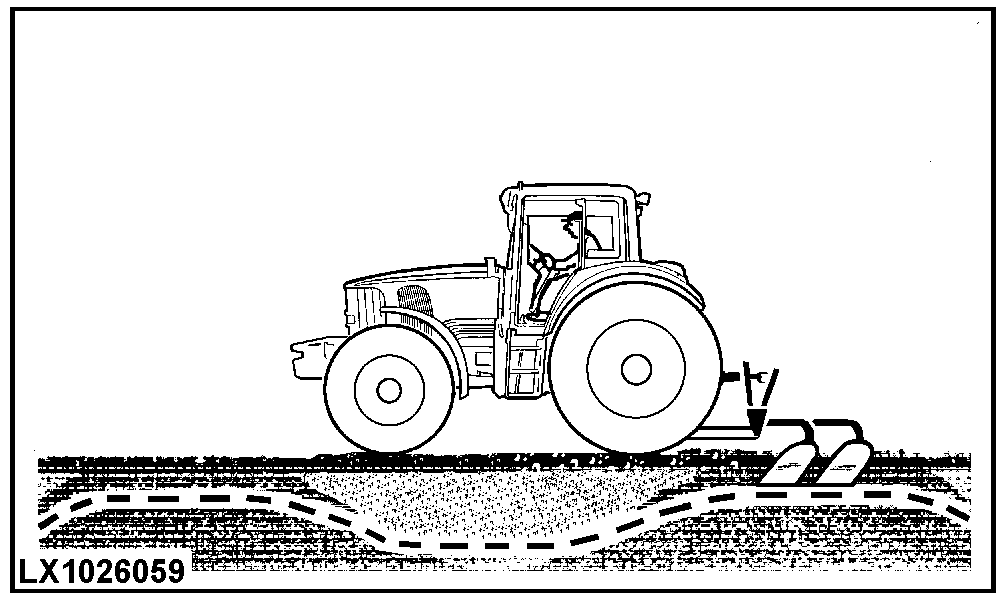

Turn CLOCKWISE to increase draft response.

With the control turned to a higher number, the implement is raised as resistance (soil density) increases and lowered as resistance decreases; typical settings are:

Implement	Draft Control Setting
Integral Ripper/Subsoiler	1—3
Integral Chisel Plow	2—4
Semi-Integral Moldboard Plow	2—4
Integral Moldboard Plow	3—5
Integral Field Cultivator or Box Blade Scraper	4—5
