Operate Electrohydraulic Rate-of-Drop Control—If Equipped

CAUTION: To avoid injury from hitch movement, only adjust rate of drop from operator’s station.

IMPORTANT: Ideal minimal implement rate of drop from fully raised to fully lowered is 2 seconds. Rate of drop is directly related to implement weight; therefore select a rate slow enough to prevent damage.

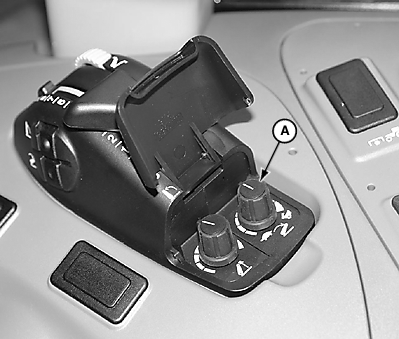

LV14563-UN-04AUG11

A - Electrohydraulic Rate-of-Drop Control

Electrohydraulic Hitch Rate-of-Drop Control:

For FASTER rate of drop, rotate knob (A) to right (CLOCKWISE).

For SLOWER rate of drop, rotate knob (A) to left (COUNTERCLOCKWISE).
