Operate Electrohydraulic Height Limit Control—If Equipped

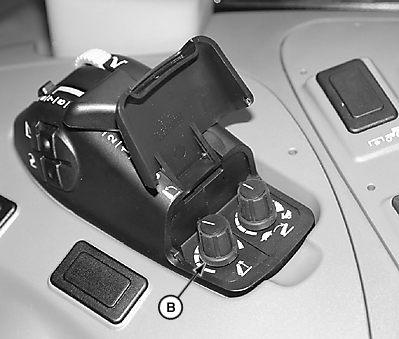

LV14564
LV14564-UN-04AUG11

B - Height Limit Control Knob

The height to which an implement is raised can be limited with height limit control knob (B).

For MINIMUM height, turn knob (B) fully Left (COUNTERCLOCKWISE).

For MAXIMUM height, turn knob (B) fully Right (CLOCKWISE).

JZ81662,000035F-19-20110812
