Convert Category II Hitch to Category I

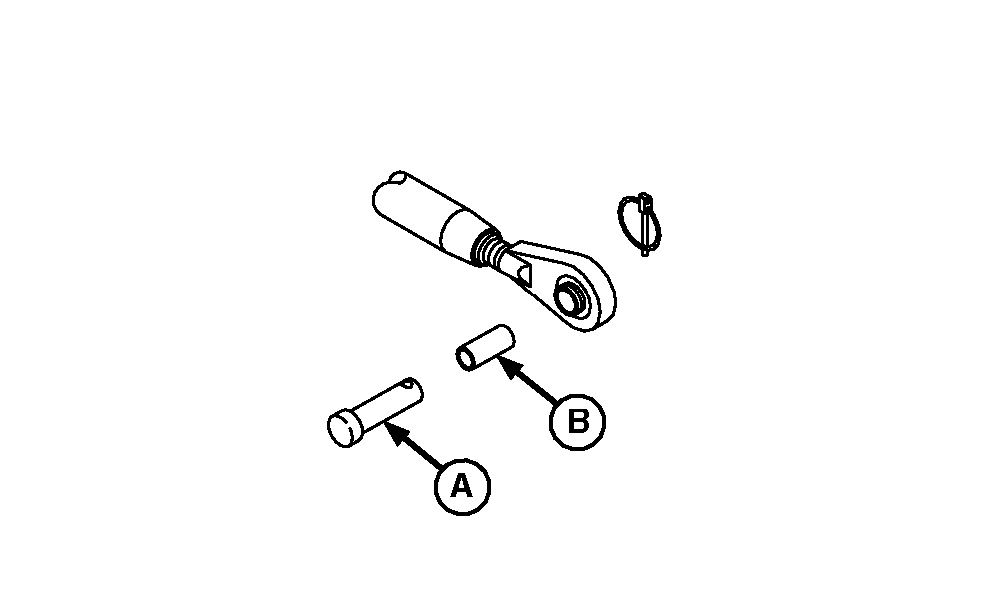

LV9640-UN-11AUG04

Center Link End

A - Implement Pin

B - Center Link Reducing Bushing

If Category I implements are to be used, the Category II hitch can easily be converted by inserting reducer bushings (B) in center link end and draft link ends. Smaller implement pins (A) are also needed when bushings are installed.

See your John Deere dealer for parts.

NOTE: Category I implements may require center link to be mounted to attaching bracket holes. Refer to “Position Center Link” in this section.
