Adjust Lateral Float

LV14581-UN-05AUG11

LV14583-UN-10AUG11

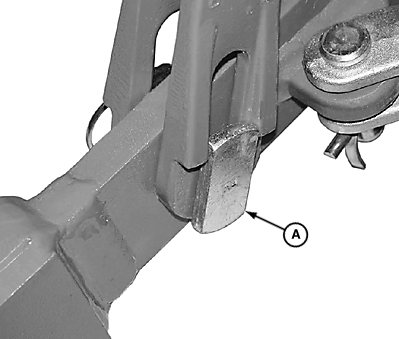

A - Pin in Float Position (Vertical)

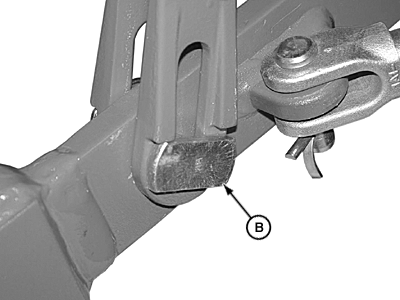

B - Pin in Fixed Position (Horizontal)

• Float Position (A): Ground following implements (cultivator or mower), use ground gauging skids or wheels to rise/lower slightly or twist as implement follows ground contour.
• Rigid Position (B): Ground engaging implements (plows, rippers, disc) require fixed ground depth and alignment with tractor, no relative twisting.
