Mid-Mount SCV Control Lever and Coupler Identification—If Equipped
LV14586-UN-10AUG11

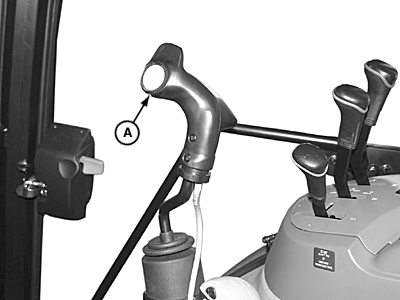

Multifunction Control Lever
A - Multifunction Control Lever
Lever (A) controls oil flow to corresponding selective control valve (SCV) couplers, located at the right side of tractor. Right-hand side couplers are for extension; left-hand side couplers are for retraction.
LV14593-UN-10AUG11

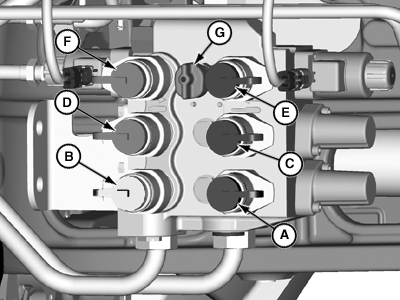

A - Bucket Cylinder—Rod End (Black)
B - Bucket Cylinder—Head End (Yellow)
C - Boom Cylinder—Head End (Blue)
D - Boom Cylinder—Rod End (Red)
E - Third-Function Cylinder—Head End (Orange)
F - Third-Function Cylinder—Rod End (Green)
G - Adjustable Flow Control
|
