Adjust Seat—Low Profile

PULV004580-UN-20JUN09

Low Profile

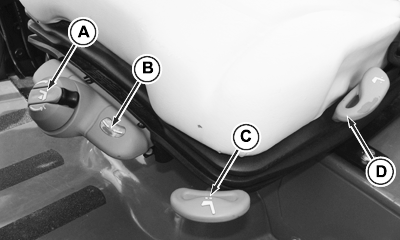

A - Weight Adjustment Lever

B - Weight Adjustment Indicator

C - Forward/Backward Adjustment Lever

D - Backrest Tilt Adjustment Lever

CAUTION: To avoid accidents, adjust seat before driving.

IMPORTANT: While adjusting seat, make sure all controls can be easily accessed.

Adjust to suit operator. Three seat adjustments are available:

Weight Adjustment

1. Flip out weight adjustment lever (A).
2. Turn lever clockwise (increase load) or counterclockwise (decrease load) until desired weight setting shows on the weight adjustment indicator (B).

   IMPORTANT: Stop turning lever (A) counterclockwise (decreasing load) when seat reaches minimum weight position and lever resistance increases. Seat mechanism could be damaged.

   NOTE: Adjustable weight range is 54–145 kg (120–320 lb). Suspension should not bottom out when properly adjusted.

3. Return lever (A) to lock seat in position.

Forward/Backward Adjustment

1. Lift forward/backward adjustment lever (C) up.
2. Slide seat to desired position.
3. Release forward/backward adjustment lever (C) to lock seat in position.

Backrest Tilt Adjustment

1. Lift backrest tilt adjustment lever (D).
2. Tilt backrest forward or rearward as desired.
3. Release backrest tilt adjustment lever (D) to lock seat in position.

Height Adjustment

1. Lift seat pan up until a click is heard.
2. Lift seat pan up past highest position, then lower into desired position.
