Use Rear SCV to Provide Power Beyond Oil

IMPORTANT: For continuous oil supply, set rear SCV valve l, ll, or lll to “continuous” detent.

1. NOTE: If equipped with deluxe rear selective control valve (SCV), oil can be supplied to power beyond equipment.

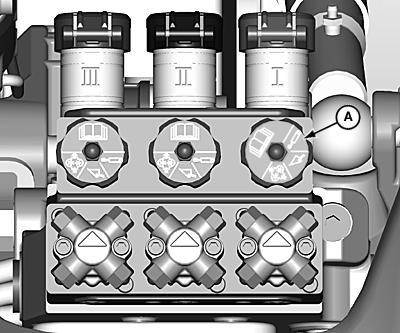

   LV14608-UN-11AUG11

   A - SCV I into Continuous Position

   SHUT OFF engine.

---




2. Connect power beyond hose to SCV I couplers.

3. Set deluxe rear SCV I detent to “continuous”.

4. START engine.

5. Move SCV control lever I into extend or retract.

6. Oil is now supplied to power beyond device.

7. To stop, de-activate power beyond device, then place SCV control lever I into neutral.

8. SHUT OFF engine and disconnect hoses.
