Use Hydraulic Power Beyond Coupler—If Equipped

LV14622
LV14622-UN-11AUG11

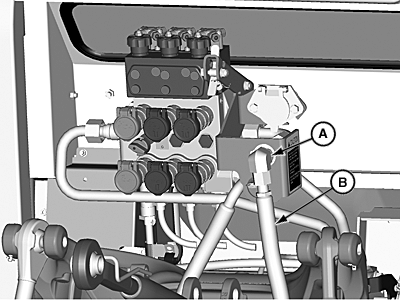

A - Hose Coupler

B - Power Beyond Hose

Power beyond is designed for applications where continuous high volume hydraulic oil flow is needed.

To use power beyond feature, remove hose (B) from coupler (A) and attach to implement “return” port. To complete the hydraulic circuit, attach implement “pressure” hose to open coupler (A).

When not in use, plug hose end into coupler for storage (as shown).

Parts for this attachment are available from your John Deere dealer.

JZ81662,0000381-19-20110810
