Operate Mechanical Rate-of-Drop Control—If Equipped

CAUTION: To avoid injury from hitch movement, only adjust rate of drop from operator’s station.

IMPORTANT: Ideal minimal implement rate of drop from fully raised to fully lowered is 2 seconds. Rate of drop is directly related to implement weight; therefore select a rate slow enough to prevent damage.

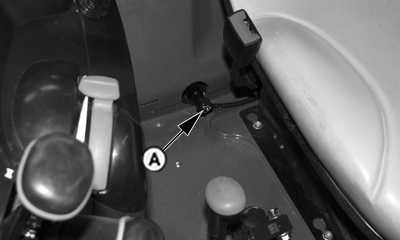

PULV000239-UN-06MAR08

OOS

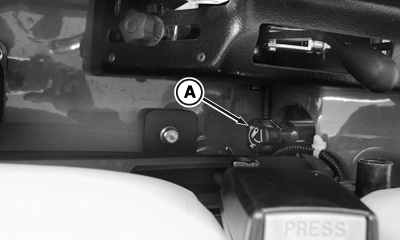

PULV004680-UN-16DEC09

Low Profile

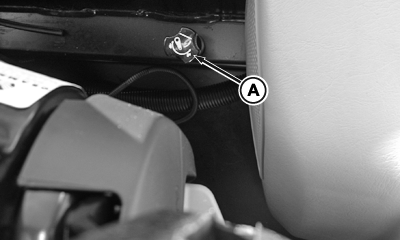

PULV004697-UN-28JAN10

Cab

A - Rate-of- Drop Control Knob

Mechanical Hitch Rate of Drop:

For FASTER rate of drop, rotate knob (A) to left (COUNTERCLOCKWISE).

For SLOWER rate of drop, rotate knob (A) to right (CLOCKWISE).
