Defrost Windshield and Side Glass

1.

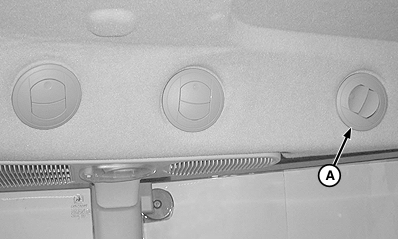

   LV8596-UN-14AUG03

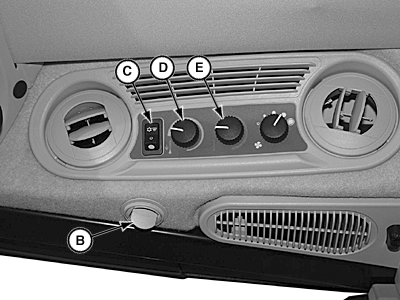

   LV14769-UN-09SEP11

   A - Front Vent

   B - Side Vent

   C - Defrost Switch

   D - Air Conditioner Temperature Control Knob

   E - Heater Temperature Control Knob

   Aim two front vents (A) toward windshield.

---




2. Aim small side vent (B) toward side window

3. NOTE: Closing middle and rear vents helps clear windshield faster.

   Press top half of defrost switch (C) and turn air conditioner temperature control knob (D) to full counterclockwise position.

4. Turn heater temperature control knob (E) clockwise to obtain desired temperature.
