Door and Windows

LV15549-UN-14MAR12

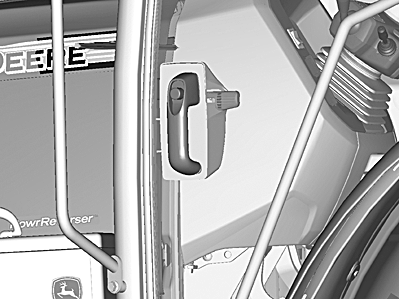

Cab Door - Left Side Shown

If cab doors are blocked in an emergency situation rear window provides a large exit path.

LV12459-UN-14MAR06

Side window

LV12460-UN-12APR05

Rear window

Side and rear windows can be opened. Release latch and push window out to open.

Sun Roof

LV15532-UN-08MAR12

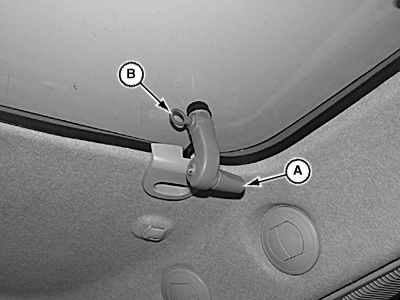

Sunroof

Using levers (A), sun roof can be opened for better air circulation.

Sun roof can be used as an emergency exit by removing pins (B) and fully opening.
