Set Tread—Two-Position Rear Wheels
M47178-UN-31JAN92
IMPORTANT: After setting wheel spacing, tighten rear wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.
| Item | Measurement | Specification |
| Rear Steel Wheel Disk-to-Hub M20 Bolts | Torque | 600 N˙m (445 lb-ft) |
|

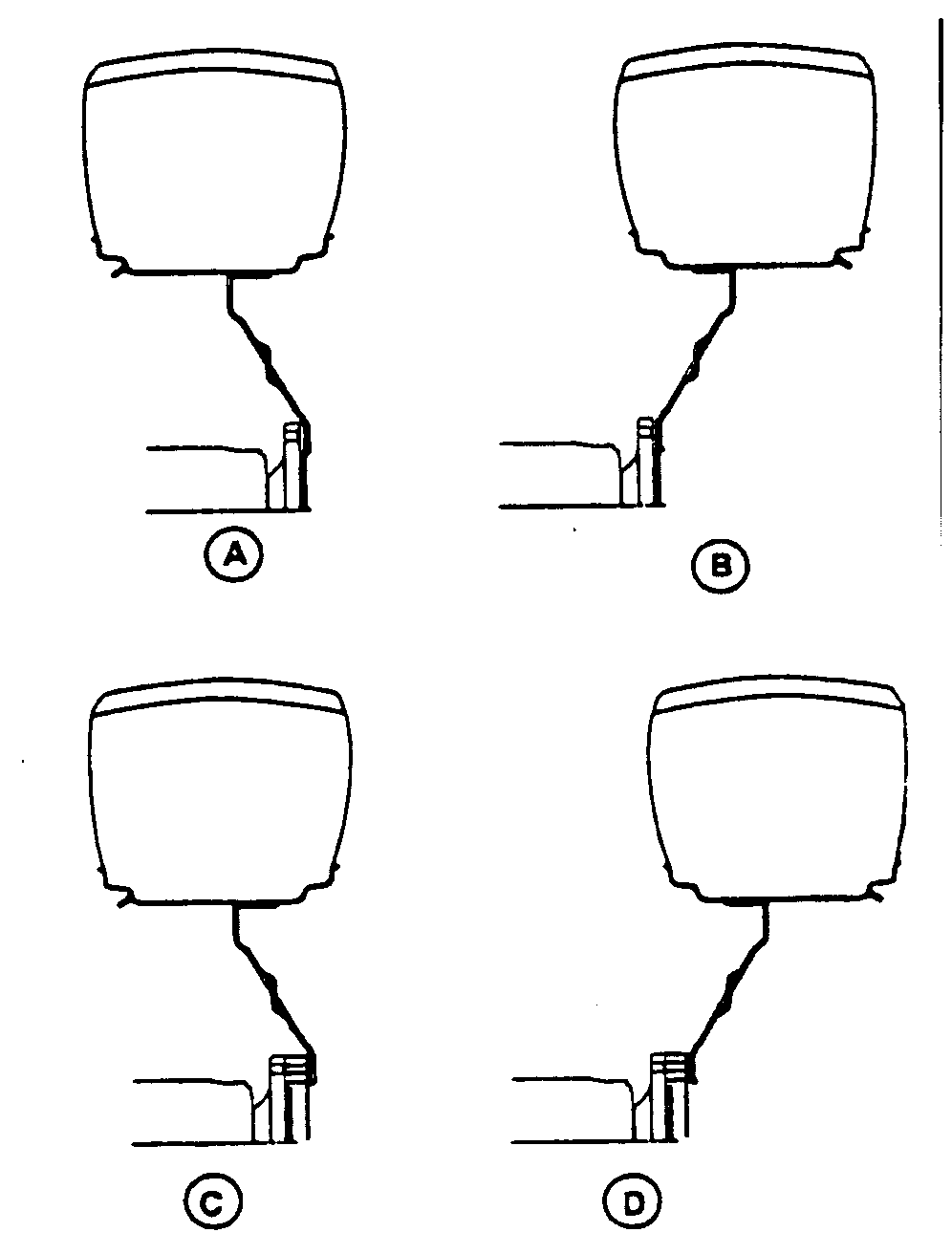

TWO-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
No Spacer |
30 mm Spacer |
44 mm Spacer |
111 mm Spacer |
|||||
|
Tire |
A |
B |
C |
D |
C |
D |
C |
D |
|
21.5L-16.1 6PR R3 Bias (5ML Only) |
||||||||
|
22.5LL-16.1 6PR R3 Bias (Turf) |
1268 mm (49.9 in.) |
1658 mm (65.3 in.) |
INT1 |
INT1 |
INT1 |
INT1 |
INT1 |
INT1 |
|
23.1-26 8PR R3 Bias (Turf) |
INT1 |
1658 mm (65.3 in.) |
1307 mm (51.5 in.) |
INT1 |
1321 mm (52.0 in.) |
INT1 |
1388 mm (54.7 in.) |
INT1 |
|
1 Interference (Do not use)
|
