Set Tread—Multi-Position MFWD Wheels

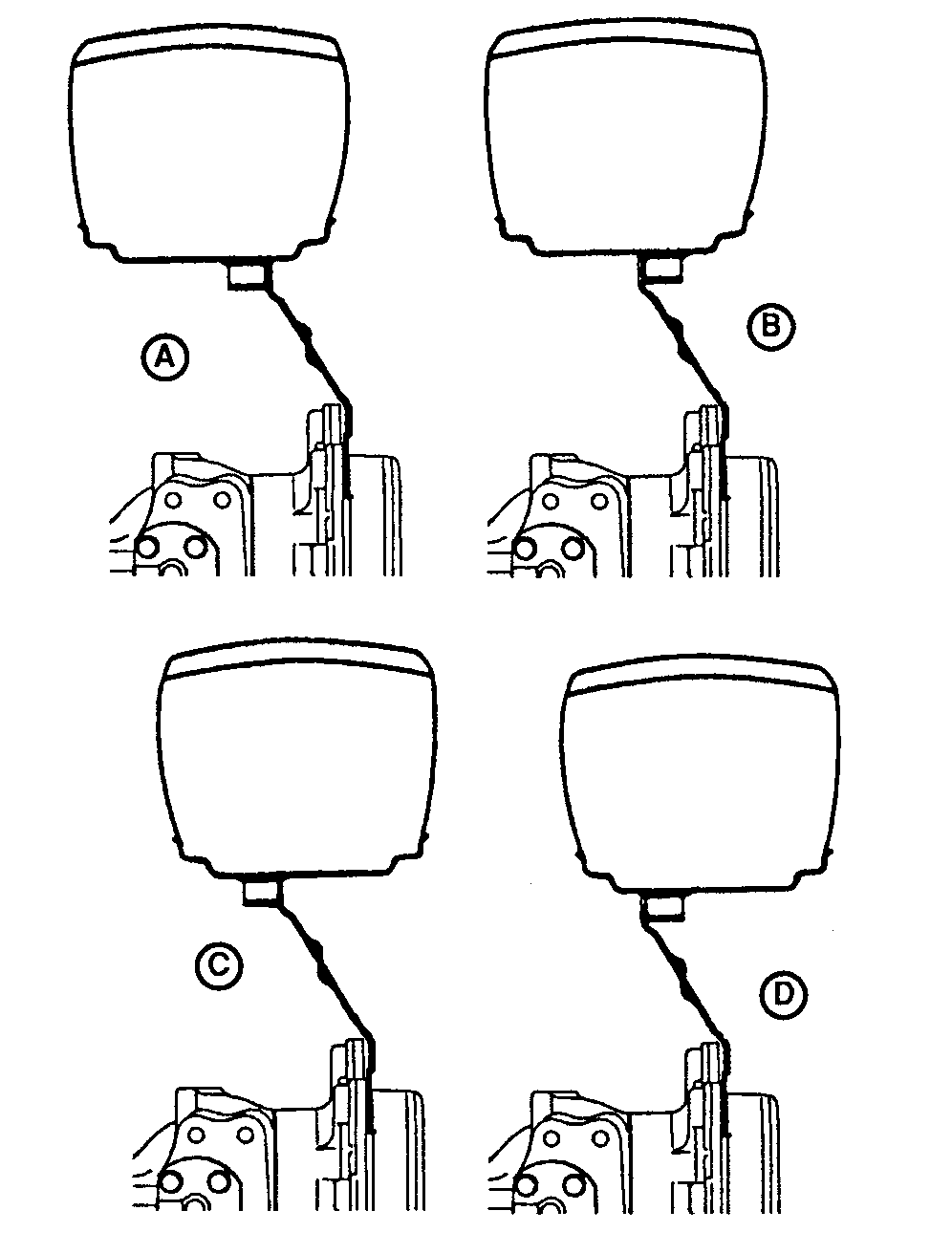

LV601
LV601-UN-22APR94

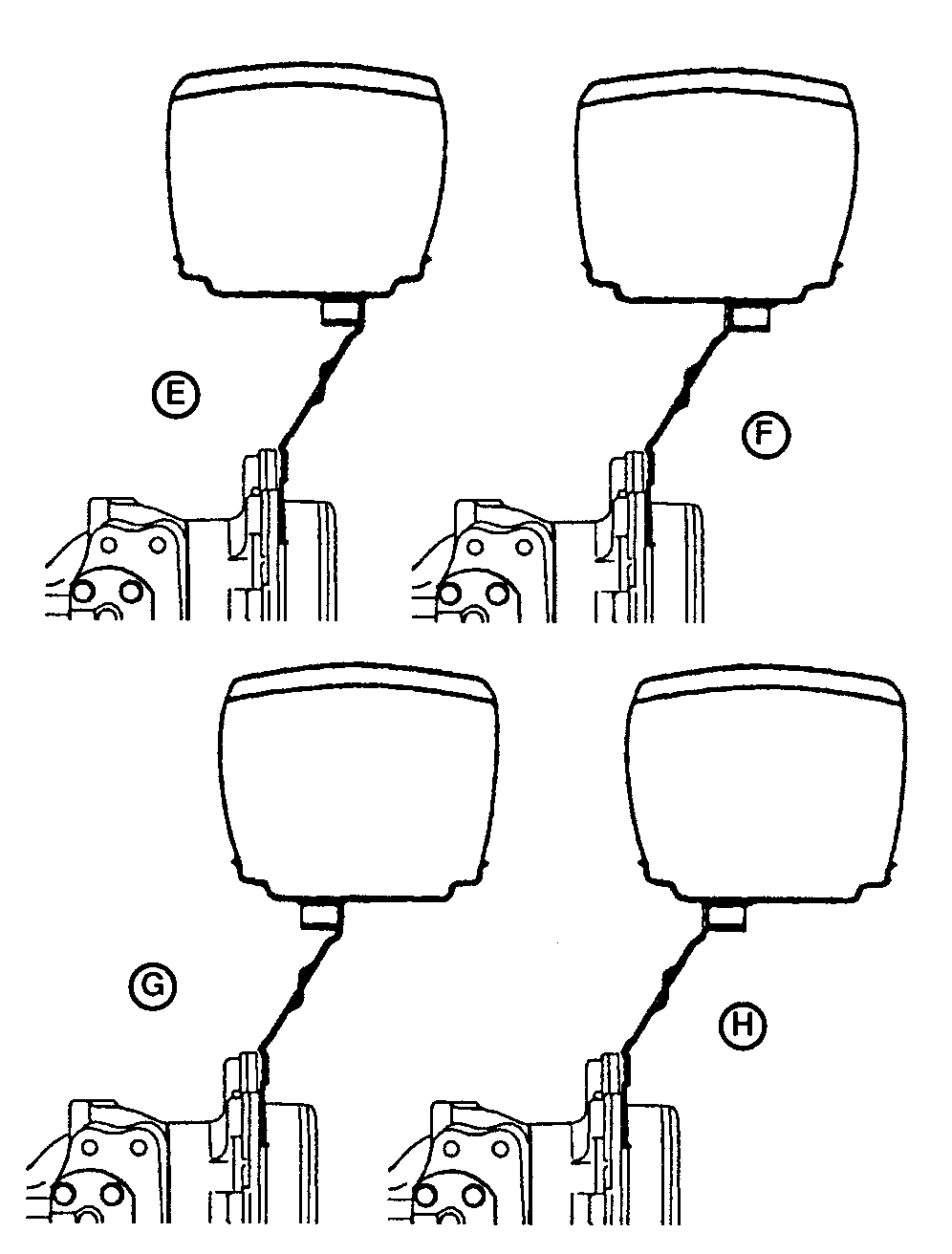

LV602
LV602-UN-22APR94

Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. (See Selecting Front Tire Rolling Direction in this section.)

Tread settings are measured at the middle of the tires at axle height.

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

ItemMeasurementSpecification
MFWD Wheel Rim-to-Disk BoltsTorque245 N˙m (180 lb-ft)
MFWD Wheel Disk-to-Hub NutsTorque300 N˙m (220 lb-ft)

MULTI-POSITION MFWD WHEELS—TREAD WIDTH (Centerline-to-Centerline)



Diagram

Tire

A

B

C

D

E

F

G

H

9.5-16 6PR R3 Bias (5ML Only)

INT1

N/A

N/A

N/A

1730 mm (68.1 in.)

N/A

N/A

N/A

9.5-24 6PR R1 Bias

1367 mm (53.8 in.)

1480 mm (58.3 in.)

1519 mm (59.8 in.)

1632 mm (64.3 in.)

1667 mm (65.6 in.)

1780 mm (70.1 in.)

1819 mm (71.6 in.)

1932 mm (76.1 in.)

11.2-24 6PR R1 Bias

1342 mm (52.8 in.)

1454 mm (57.2 in.)

1545 mm (60.8 in.)

1657 mm (65.2 in.)

1642 mm (64.6 in.)

1754 mm (69.1 in.)

1845 mm (72.6 in.)

1957 mm (77.0 in.)

11.2-24 8PR R1 Bias (5ML Only)

1299 mm (51.1 in.)

1395 mm (54.9 in.)

1501 mm (59.1 in.)

1597 mm (62.9 in.)

1699 mm (66.9 in.)

1795 mm (70.7 in.)

1901 mm (74.8 in.)

1997 mm (78.6 in.)

11.2R24 115A8 R1 Radial

1299 mm (51.1 in.)

1395 mm (54.9 in.)

1501 mm (59.1 in.)

1597 mm (62.9 in.)

1699 mm (66.9 in.)

1795 mm (70.7 in.)

1901 mm (74.8 in.)

1997 mm (78.6 in.)

12.4R24 122A8 R1 Radial

1342 mm (52.8 in.)

1454 mm (57.2 in.)

1545 mm (60.8 in.)

1657 mm (65.2 in.)

1642 mm (64.6 in.)

1754 mm (69.1 in.)

1845 mm (72.6 in.)

1957 mm (77.0 in.)

13.6R24 125A8 R1W Radial

1354 mm (53.3 in.)

1453 mm (57.2 in.)

1546 mm (60.9 in.)

1645 mm (64.8 in.)

1654 mm (65.1 in.)

1753 mm (69.0 in.)

1846 mm (72.7 in.)

1945 mm (76.6 in.)

12LL-16 6PR R3 Bias (Turf)

INT1

N/A

N/A

N/A

1691 mm (66.6 in.)

N/A

N/A

N/A

44x18-20 4PR R3 Bias



12.5/80-18 12PR I3 Bias (R4 type) (Also 5ML)

1585 mm (62.4 in.)

N/A

N/A

N/A

1714 mm (67.5 in.)

N/A

N/A

N/A

230/95R32 126A8/126B R1 Radial (Four Star, crop clearance)

1365 mm (53.7 in.)

1404 mm (55.3 in.)

1500 mm (59.1 in.)

1539 mm (60.2 in.)

1765 mm (69.5 in.)

1804 mm (71.0 in.)

1900 mm (74.8 in.)

1939 mm (76.3 in.)

13.6-38 6PR R2 Tube Bias (Hi Crop Only)

1303 mm (51.3 in.)

1403 mm (55.2 in.)

1501 mm (59.1 in.)

1603 mm (63.1 in.)

1701 mm (67.0 in.)

1803 mm (71.0 in.)

1901 mm (74.8 in.)

2003 mm (78.9 in.)

230/95R40 122A8 R1 Radial (Hi Crop Only)

1296 mm (51.0 in.)

1330 mm (52.4 in.)

1570 mm (61.8 in.)

1603 mm (63.1 in.)

1679 mm (66.1 in.)

1730 mm (68.1 in.)

1970 mm (77.6 in.)

2003 mm (78.9 in.)

1 Interference (do not use)

JZ81662,0000923-19-20120319
