Set Tread—Adjustable Front Axle
LV14725-UN-25AUG11
LV1515-UN-05MAR96
A - Adjustment Holes

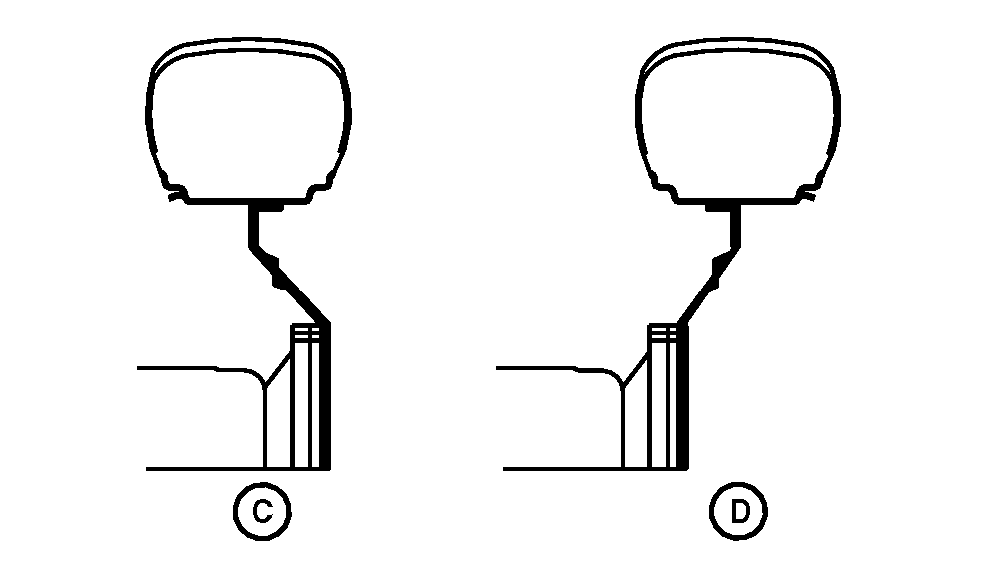

Front rims are offset. With some tires, this provides two tread spacings at each axle setting.NOTE: Tread settings are measured at the middle of the tires at axle height.
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Position1 |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
7.50-16 6PR F2 Bias |
1466 mm (57.7 in.) |
1566 mm (61.7 in.) |
1666 mm (65.6 in.) |
1766 mm (69.5 in.) |
1866 mm (73.5 in.) |
1966 mm (77.4 in.) |
|
11L-15 8PR F2 Bias 11LL-15 8PR F3 Bias (Truck type) 27/12LL-15 6PR R3 Bias (Turf) |
1488 mm (58.6 in.) |
1588 mm (62.5 in.) |
1688 mm (66.5 in.) |
1788 mm (70.4 in.) |
1888 mm (74.3 in.) |
1988 mm (78.3 in.) |
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Position2 |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
7.50-16 6PR F2 |
1595 mm (62.8 in.) |
1695 mm (66.7 in.) |
1795 mm (70.7 in.) |
1895 mm (74.6 in.) |
1995 mm (78.5 in.) |
2095 mm (82.5 in.) |
|
11L-15 8PR F2 11LL-15 8PR F3 27/12LL-15 6PR R3 |
1572 mm (61.9 in.) |
1672 mm (65.8 in.) |
1772 mm (69.7 in.) |
1872 mm (73.7 in.) |
1972 mm (77.6 in.) |
2072 mm (81.5 in.) |
|
1 Tread
position 1 is with axle adjustment at its most inward location. See
ADJUST FRONT AXLE TREAD WIDTH in this section.
|
JZ81662,0000924-19-20120319 |
