Creeper Gear Operation

PULV004929-UN-18JUN09

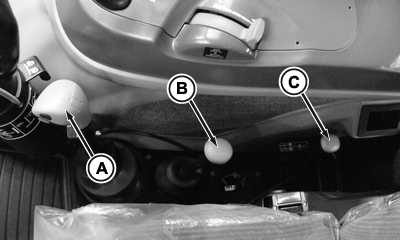

Cab

LV14554-UN-03AUG11

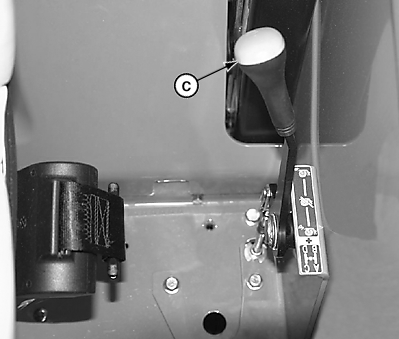

OOS

PULV000233-UN-06MAR08

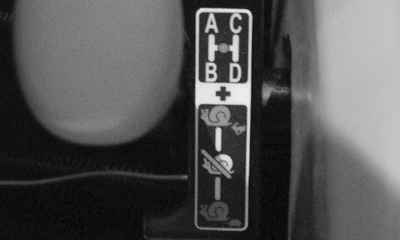

Decal, Cab Shown

A - Speed Shift Lever

B - Range Shift Lever

C - Creeper Lever

IMPORTANT: While applying creeper, direction control lever must be placed in direction (forward or reverse) after creeper lever and speed control lever.

A two-speed creeper gear is available as an option and provides slowest speed range.

Place range shift lever (B) in neutral to operate creeper. Change creeper lever (C) speed selection when at a complete stop.

SyncShuttle Plus™ Transmission: Speed shift lever (A) provides six forward travel speeds and two reverse in the creeper range.

PowrReverser™ Transmission: Speed shift lever (A) provides eight forward travel speeds and eight reverse travel speeds in the creeper range.
