Stop Tractor

1.
   LV14766-UN-08SEP11

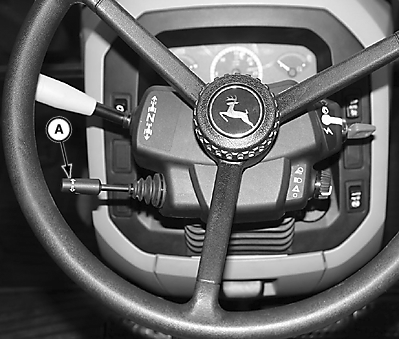

   A - Reverser Lever

   Stop tractor travel with brakes.

---




2. If equipped with reverser, place reverser lever (A) into NEUTRAL.

3. CAUTION: Leaving transmission in gear with engine off WILL NOT prevent tractor from moving.

   IMPORTANT: Stop tractor before moving gear shift lever to PARK. Park lock will not engage and transmission may be damaged if tractor is moving.


   LV14812-UN-27SEP11

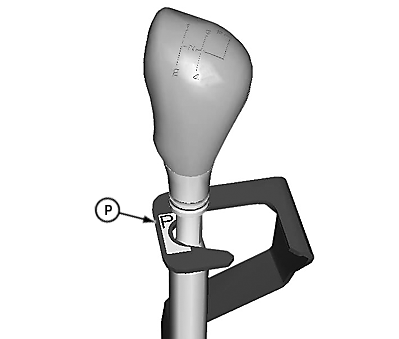

   Park Lock Position

   P - Park Position

   Depress clutch pedal and place range shift lever to NEUTRAL position. Place gear shift lever to PARK (P).

---




4. Lower all equipment to the ground.

5. Put all SCV levers in NEUTRAL.

6. Disengage PTO.

7. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.


   LV14539-UN-02AUG11

   Cab Shown

   A - Hand Throttle

   Pull hand throttle (A) back to slow idle position. Allow engine to idle for 2—5 minutes.

---




8. CAUTION: Remove key from ignition switch to prevent operation by untrained personnel.


   LV14540-UN-02AUG11

   Key Position

   B - Ignition Switch

   Turn key (B) to STOP position and remove from switch.

---
