Fill Fuel Tank

CAUTION:

TS202-UN-23AUG88

LV14734-UN-25AUG11

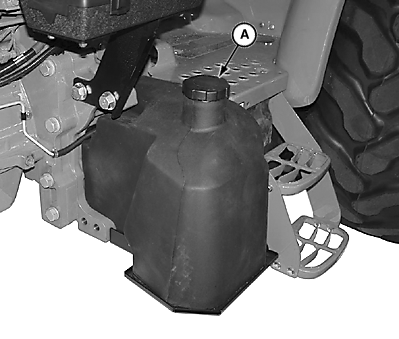

A - Fuel Tank (Outer Tank Shown)

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease and debris. Always clean up spilled fuel.

Fill fuel tank at end of each day's operation. This prevents condensation in tank as moist air cools.

5085M and 5100M	Open Operator's Station	Outer Tank Only	113 L (29.8 gal)
5085M and 5100M	Cab	Outer Tank Only	137 L (36.2 gal)
5100MH - Hi-Crop	Open Operator's Station Cab	Outer and Inner Tank	139 L (36.7 gal)
5115M AND 5115ML	Open Operator’s Station	Outer and Inner Tank	153 L (40.4 gal)
5115M	Cab	Outer and Inner Tank	177 L (46.8 gal)

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver, or equivalent, may be added to fuel or bulk storage tank.
