Right-Hand Console Controls—Open Operator’s Station

LV15480-UN-22FEB12

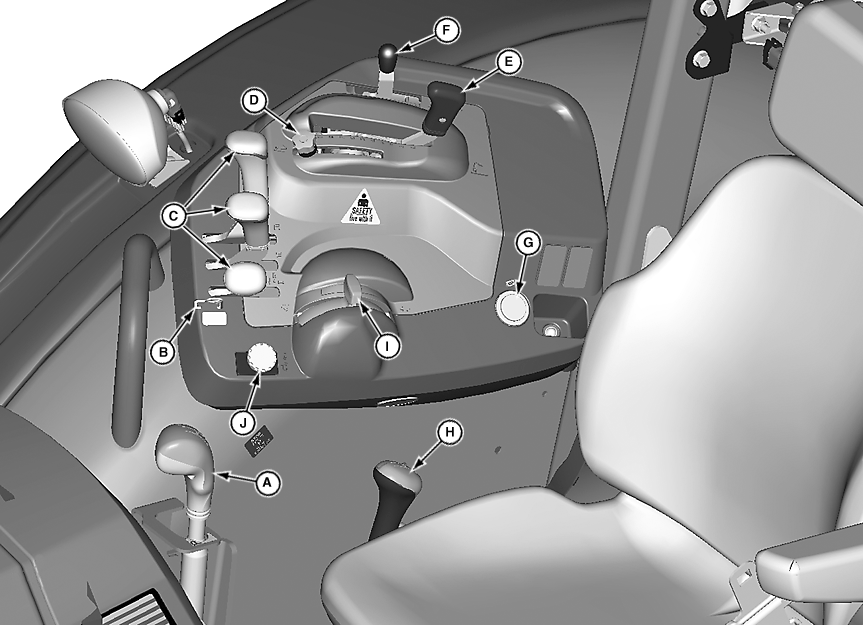

Right-Hand Console Controls

LV14494-UN-28JUL11

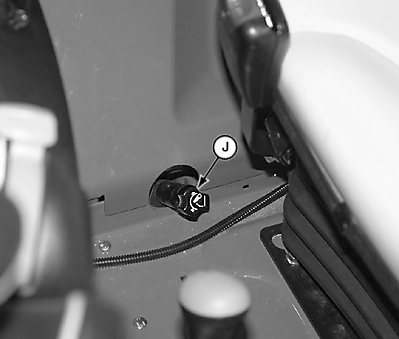

Rear Hitch Rate-of-Drop Knob

LV14493-UN-28JUL11

PTO Shift Lever

A - Gear Shift Lever

B - Selective Control Valve Levers (If Equipped)

C - Position Control Stop Knob

D - Rear Hitch Position Control Lever

E - Rear Hitch Draft Control Lever

F - Power Outlet

G - Range Shift Lever

H - Hand Throttle

I - Rear PTO Engagement Switch

J - Rear Hitch Rate-of-Drop Knob (Located Behind Seat)

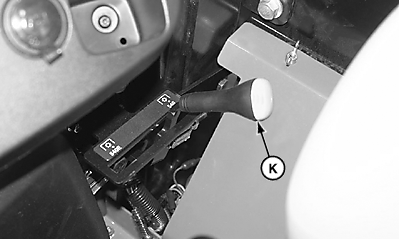

K - Rear PTO Speed Shift Lever (If Equipped)

NOTE: Open Operator's Station (OOS), mechanical rear hitch and 12x4 transmission controls shown.

Electrohydraulic Hitch Controls are similar on tractors with Cab. (Refer to ”Right-Hand Console Controls—Cab” in Section 20.)

LV14492-UN-28JUL11

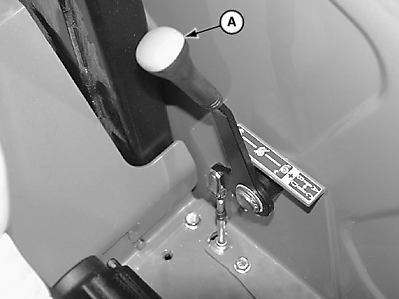

Creeper Lever (If Equipped)

LV14495-UN-28JUL11

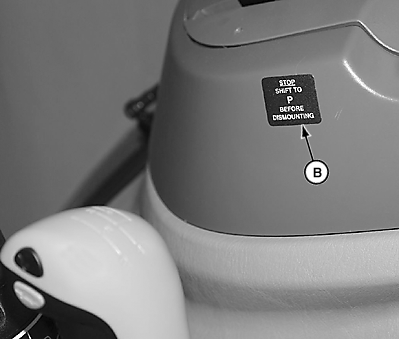

Park Position Decal

LV14809-UN-26SEP11

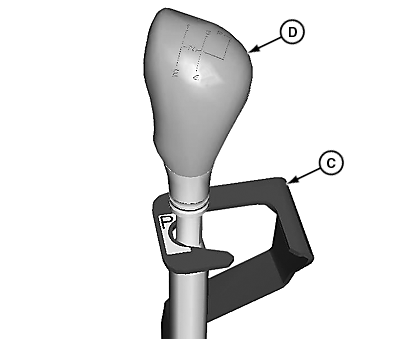

Gear Shift Lever in Park Position

A - Creeper Lever (If Equipped)

B - Park Position Decal

C - Park Position Bracket

D - Gear Shift Lever in Park Position

NOTE: Ensure gear shift lever is placed into park position before operator leaves seat.
