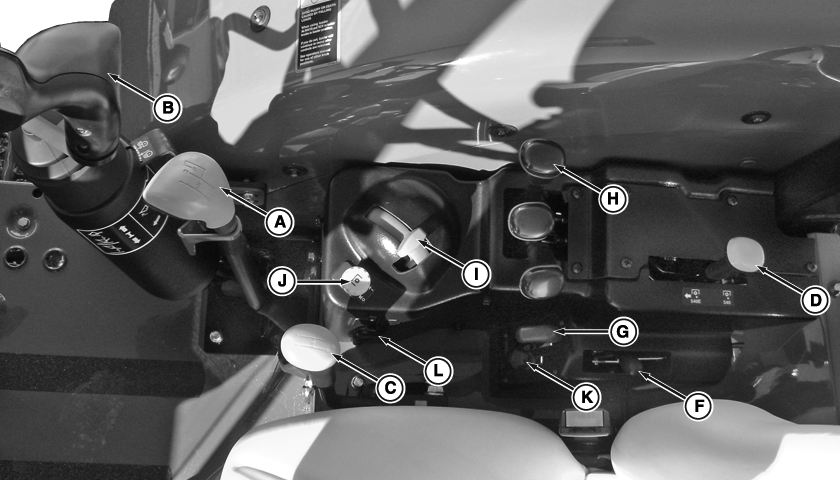

Right-Hand Console Controls—Low Profile

PULV004674-UN-16DEC09

Floor-Mounted Controls

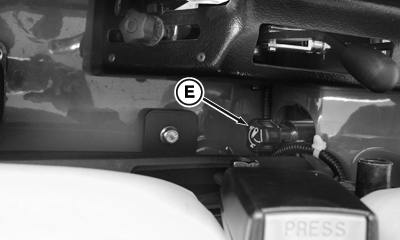

PULV004654-UN-30NOV09

Rear Hitch Rate-of-Drop Knob

A - Gear Shift Lever

B - Multifunction Control Lever (If Equipped)

C - Range Shift Lever

D - PTO Speed Shift Lever (If Equipped)

E - Rear Hitch Rate-of-Drop Knob (Located Behind Seat)

F - Rear Hitch Draft Control Lever

G - Rear Hitch Position Control Lever

H - Selective Control Valve Levers (If Equipped)

I - Hand Throttle

J - PTO Engagement Switch

K - Control Lever Stop

L - Power Outlet

NOTE: Low profile OOS, dual mid-mount SCV, triple rear SCV, PowrReverser™ transmission controls shown.

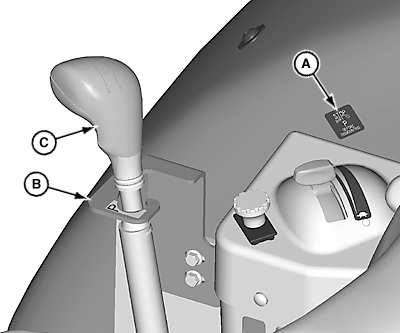

LV15527-UN-05MAR12

Gear Shift Lever in Park Position Bracket

A - Park Position Decal

B - Park Position Bracket

C - Gear Shift Lever In Park Position

NOTE: Ensure gear shift lever is placed into park position before operator leaves seat.
