Right-Hand Console Controls—Cab

LV15530-UN-07MAR12

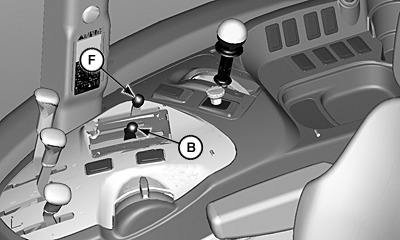

Electrohydraulic Hitch Control

LV14759-UN-07SEP11

Mechanical Hitch Control

LV14758-UN-07SEP11

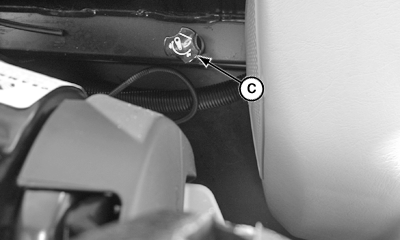

Left-Hand Side Rear Corner—Mechanical Shown

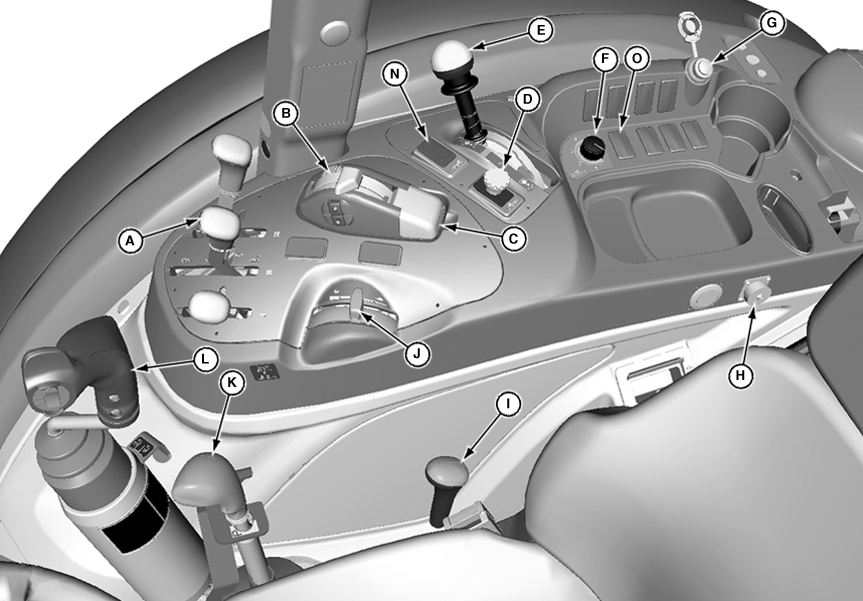

A - Selective Control Valve Levers (If Equipped)

B - Rear Hitch Control

C - Rear Hitch Rate-of-Drop Control and Rear Hitch Height Limit Control

D - PTO Engagement Switch

E - PTO Speed Shift Lever (If Equipped)

F - Rear Hitch Draft Control Knob

G - Power Outlet

H - Convenience Outlet

I - Range Shift Lever

J - Hand Throttle

K - Gear Shift Lever

L - Multifunction Control Lever (If Equipped)

M - Creeper Lever (If Equipped)

N - Front PTO Switch (If Equipped)

O - Auxiliary Output Jack (If Equipped)

NOTE: Cab, electrohydraulic rear hitch controls, PowrReverser Plus™ transmission controls shown.

Creeper lever not shown in this picture.

RXA0099430-UN-06OCT08

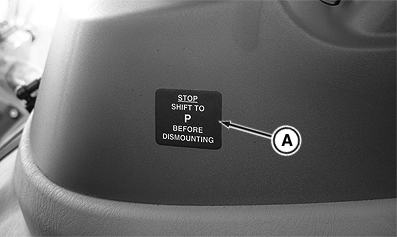

Park Position Decal

LV15460-UN-24FEB12

Park Position Bracket

LV14811-UN-27SEP11

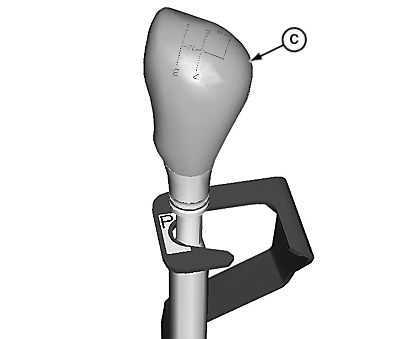

Gear Shift Lever in Park Position

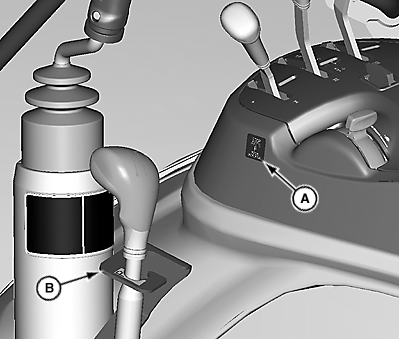

A - Park Position Decal

B - Park Position Bracket

C - Gear Shift Lever In Park Position

NOTE: Ensure gear shift lever is placed into park position before operator leaves seat.
