Road, Work, and Warning Lights

LV14310-UN-20MAY11

LV14311-UN-26MAY11

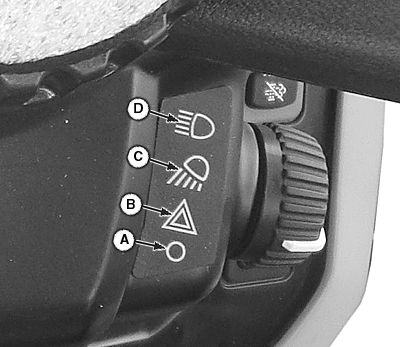

A - Off Position

B - Warning Position

C - Road Position

D - Work Position

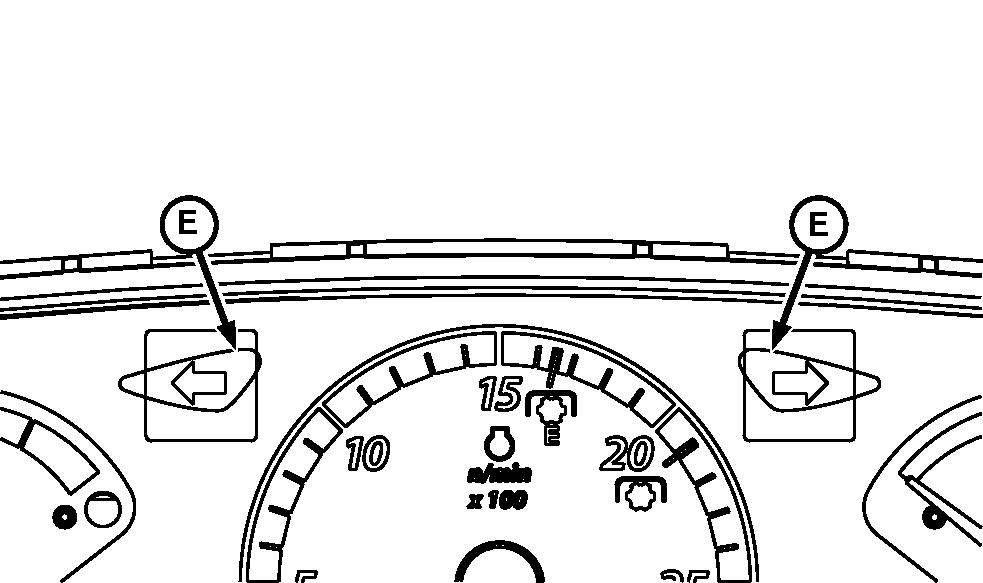

E - Warning Light Indicator

CAUTION: When on public roads, do not use work lights. Ensure light switch is set to warning or road position dependent on climate conditions.

Bright clear lights can blind or confuse drivers of other vehicles.

IMPORTANT: Adjust, repair, or replace damaged lights immediately, in accordance with Maintenance Guide.

Switch Position	Use	Warning Lights Amber	Tail Lights Red	Work Light	Headlights Front Grille
A—Off	Field, Day Time	Off	Off	Off	Off
B—Warning Light	Road, Day Time	On Flashing	Off	Off	Off
C—Road Light	On Road, No Traffic, Night Time	On Flashing	On	Off	On—Low Beam
D—Work Light	Off Road, Night Time	Off	Off	On	On—High Beam
