Turn Signal, High and Low Beam Lights

LV15525-UN-05MAR12

LV15526-UN-05MAR12

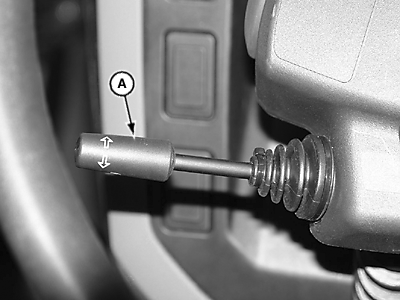

A - Turn Signal/Flash-to-Pass Lever

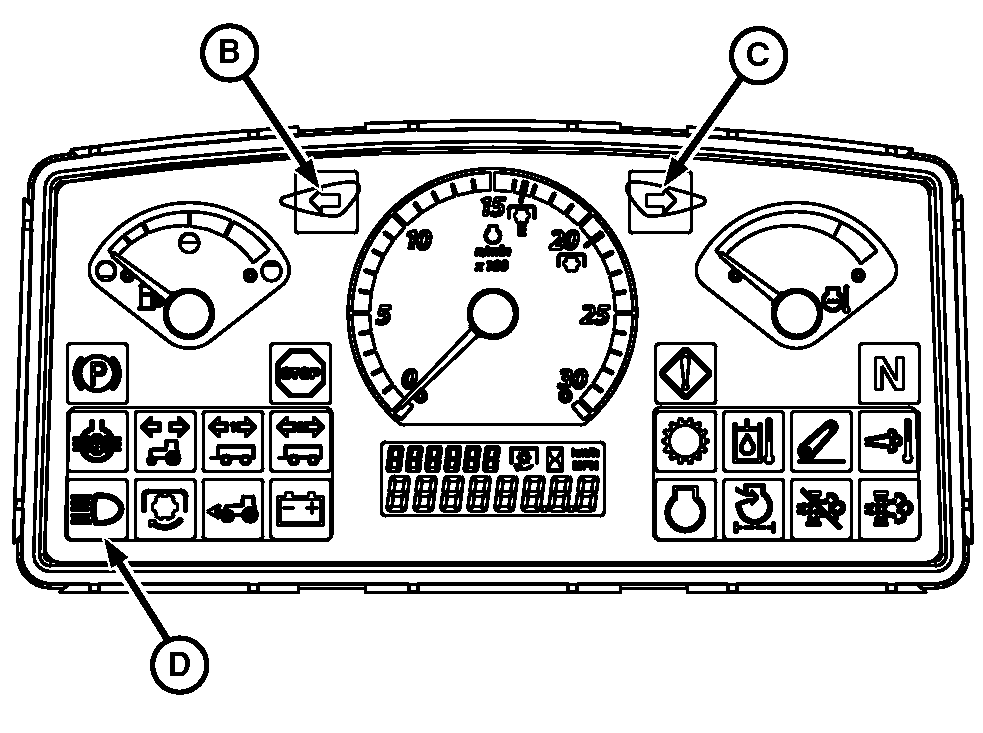

B - Left Turn Indicator

C - Right Turn Indicator

D - High Beam Indicator

CAUTION: When on public roads, do not use work lights. Ensure light switch is set to warning or road position dependent on climate conditions.

Bright clear lights can blind or confuse drivers of other vehicles.

Turn Signal Control Lever
Lever Position	Right Turn Signals	Left Turn Signals
Off	Off	Off
Up	On Flashing	Off
Down	Off	On Flashing

In the event that the operator must pass another vehicle on the road, turn signal lever is equipped with a flash-to-pass feature.

Before passing a vehicle, pull back on the turn signal and release. This will flash the high beams momentarily. The lever is spring loaded to automatically return to the low beam position.

CAUTION: If passing another vehicle is necessary, ensure that there is adequate clearance on all sides to pass safely.

Flash-to-Pass Control Lever
Lever Position	High Beam	Low Beam
Normal (Forward)	Off	On
Backward	On	Off
