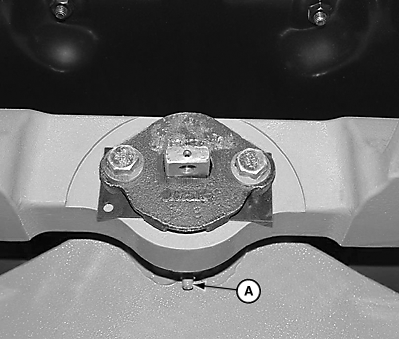

Lubricate Axle Pivot Point—2WD

LV14413
LV14413-UN-17AUG11

A - 2WD Grease Point

Apply several shots of general purpose grease (see Grease in section 85 Fuel, Lubricants, and Coolant) to 2WD axle pivot point.

NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.

Greasing too frequently can cause seal fatigue.

JZ81662,0000A02-19-20120328
