Lubricate Draft Sensing Shaft Seal

NOTE: Grease point on right side of PTO housing shown, similar present on left side.

LV14423
LV14423-UN-13JUN11

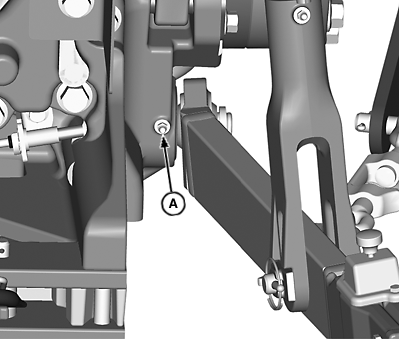

Right Side of Hitch Shown

A - Grease Point

Apply several shots of general purpose grease (see Grease in section 85 Fuel, Lubricants, and Coolant) to draft sensing shaft grease point (A).

NOTE: Service more often if operated in extremely wet and muddy conditions.

JZ81662,0000A05-19-20120328
