Replace Battery

1.
   LV14822-UN-27SEP11

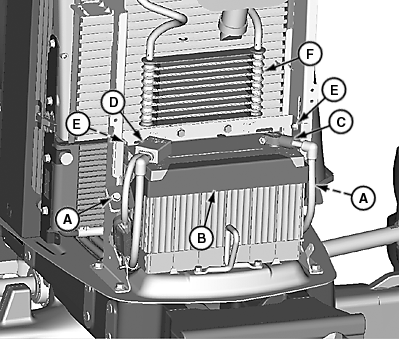

   A - Cap Screw (2 used)

   B - Battery Hold-Down

   C - Negative (—) Cable

   D - Positive (+) Cable

   E - Fuel Cooler Support Cap Screw (2 used)

   F - Fuel Cooler

   Raise hood.

---




2. CAUTION: To avoid sparks, disconnect negative (ground) cable first and connect it last.

   WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

   Remove nut and disconnect negative (ground) battery cable (C).

3. Remove nut and disconnect positive cable (D).

4. Remove cap screws (A) and battery hold-down (B).

5. Loosen fuel cooler support cap screws (E).

6. Slide fuel cooler (F) up and tighten cap screws, securing the fuel cooler in the upper slot position.

7. Remove battery.

8. When replacing battery, use John Deere battery or equivalent. (See your John Deere dealer.)

   Item	Measurement	Specification
   Battery	Volts	12 Volts

9. Install battery in reverse order of removal.
